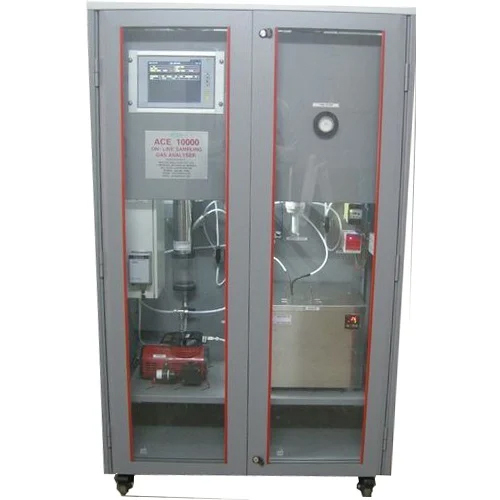

Ace 1000XX HE Continuous Emission Monitoring Systems (CEMS)

Ace 1000XX HE Continuous Emission Monitoring Systems (CEMS) Specification

Usage
Industrial

Operate Method
The system includes automated purge, periodic zero/span calibration, full diagnostics, and remote data connectivity via GSM or Ethernet.

Power Supply
Electric

Voltage
220 Volt (v)

Product Type
Online Emission Gas Analyzer

Color
Grey

Application
Designed for rugged industrial applications, it integrates NDIR, TDLAS, UVDOAS, and HFID technologies with advanced gas conditioning for CPCB-compliant 24/7 monitoring.

Display Type
Digital

Features
Gases Measured: Sox, Nox, CO, SO2, NO, NO2, CO2, NH3, HCl, HF, THC monitor/analyzer)(CEMS):

Ace 1000XX HE Continuous Emission Monitoring Systems (CEMS) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Week

Delivery Time
7 Days

About Ace 1000XX HE Continuous Emission Monitoring Systems (CEMS)

Continuous Emission Monitoring Systems

Online stack emission monitor system CPCB NPL verified Continuous Emission Monitoring System (Sox, Nox, CO, SO2, NO, NO2, CO2, NH3, HCl, HF, THC monitor/analyzer)(CEMS):
The 10000XXHE is a high-precision Heated Extractive Continuous Emission Monitoring System (CEMS) for real-time, simultaneous measurement of up to 8 gases. Designed for rugged industrial applications, it integrates NDIR, TDLAS, UVDOAS, and HFID technologies with advanced gas conditioning for CPCB-compliant 24/7 monitoring.
With a heated probe (180C), optional heat-traced sample line, refrigerant gas cooler, and a 10" touchscreen analyzer, it ensures condensation-free, drift-free, and reliable operation. The system includes automated purge, periodic zero/span calibration, full diagnostics, and remote data connectivity via GSM or Ethernet.
Indigenously designed and built in India, the 10000XXHE ensures quick service, calibration, and spares available ex-stock, providing industries with long-term reliability and minimal downtime.
SYSTEM COMPONENTS:
* Heated Probe: IP65, 3 filter, 180C self-regulated heater
* Sample Line: Teflon/SS316, optional heat tracing
* Gas Conditioning: Refrigerant cooler (4C), peristaltic drain, sampling pump
* Analyzer: Modular platform with up to 8 gas channels
* Control Cabinet: 8001500740 mm integrated unit
* Software: PC-based visualization, trending, and reporting
* Connectivity: GSM (4G), Ethernet, Modbus RS485
* Calibration: Optional remote zero/span system for up to 6 gases
KEY FEATURES & BENEFITS:
Simultaneous multi-gas measurement (up to 8 gases)
Modular architecture for simplified maintenance
Heated extractive design prevents condensation
Automatic purge and zero/span calibration
Real-time diagnostics with auto shutdown protection
CPCB-compliant and remote calibration ready
2-year onboard data storage with USB/Ethernet export
GSM/Ethernet connectivity with cloud compatibility
Multiple I/O: 8 analog, 4 digital, RS485/RS232
10" high-brightness touchscreen for intuitive control
TECHNICAL SPECIFICATIONS:
* Probe: IP65 enclosure, 3 filter, 180C heater
* Sample Tube: Teflon/SS316, optional heat tracing
* Cooler: Refrigerant-based, 4C outlet
* Pump: Diaphragm/bellows type, ~5 LPM
* Cabinet: 800W1500H740D mm, ~220 kg
* Power: 230VAC, 50Hz, ~500W (avg)
* Analyzer: 483W177H440D mm, 15 kg, rack-mountable
* Display: 10" TFT LCD touchscreen
* Data Storage: 2 years on board
* Diagnostics: Heater, flow, moisture, sensor & calibration alerts
* Calibration: Auto zero/span; remote calibration optional
OPTIONS & UPGRADES:
* Remote calibration system
* Heat-traced sample lines for long runs
* Outdoor enclosure with weather protection
* O, temperature, pressure & flow sensors
* SCADA / OPC-UA / Modbus integration
* UPS backup or redundant analyzer setup
* Certified calibration gas cylinders & kits
* Extended warranty (up to 5 years)
SERVICE & SUPPORT:
247 technical assistance and field service
On-site installation & commissioning
Operator training and AMC packages
Ex-stock spares and pan-India service network
Delivery: 1-2 weeks standard
